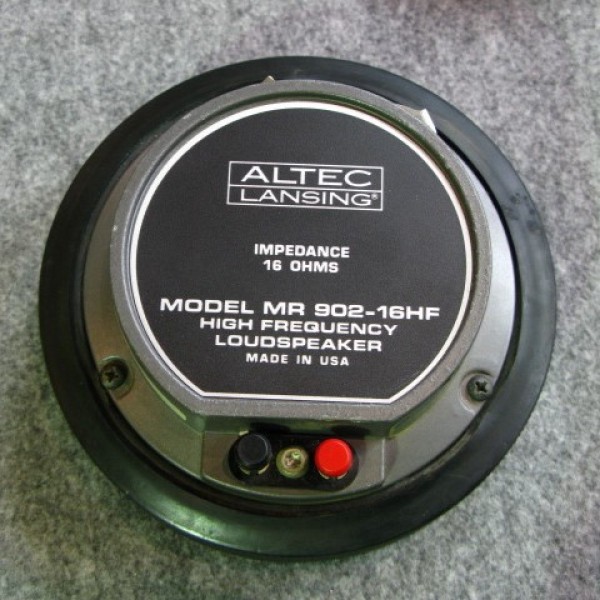

MR902-16HF
Horn type tweeter using manta ray Lehorn.
The manta ray Rayhorn prevents the directional characteristics from becoming beam-like as frequencies increase.
Newly developed driver 902-16A using manta ray Lehorn and Tangerine phase plug is combined with mounting bracket.
| Type | Horn type tweeter |
| Frequency characteristic | 2.5 kHz to 20 kHz |
| Impedance | 16 Ω |
| Allowable input | 15W |
| Output sound pressure level (new JIS) | 103dB |
| Proper crossover frequency | 5 kHz or more |
| Voice coil | 45mm |
| External dimensions | – |
| Weight | 3.36kg |
