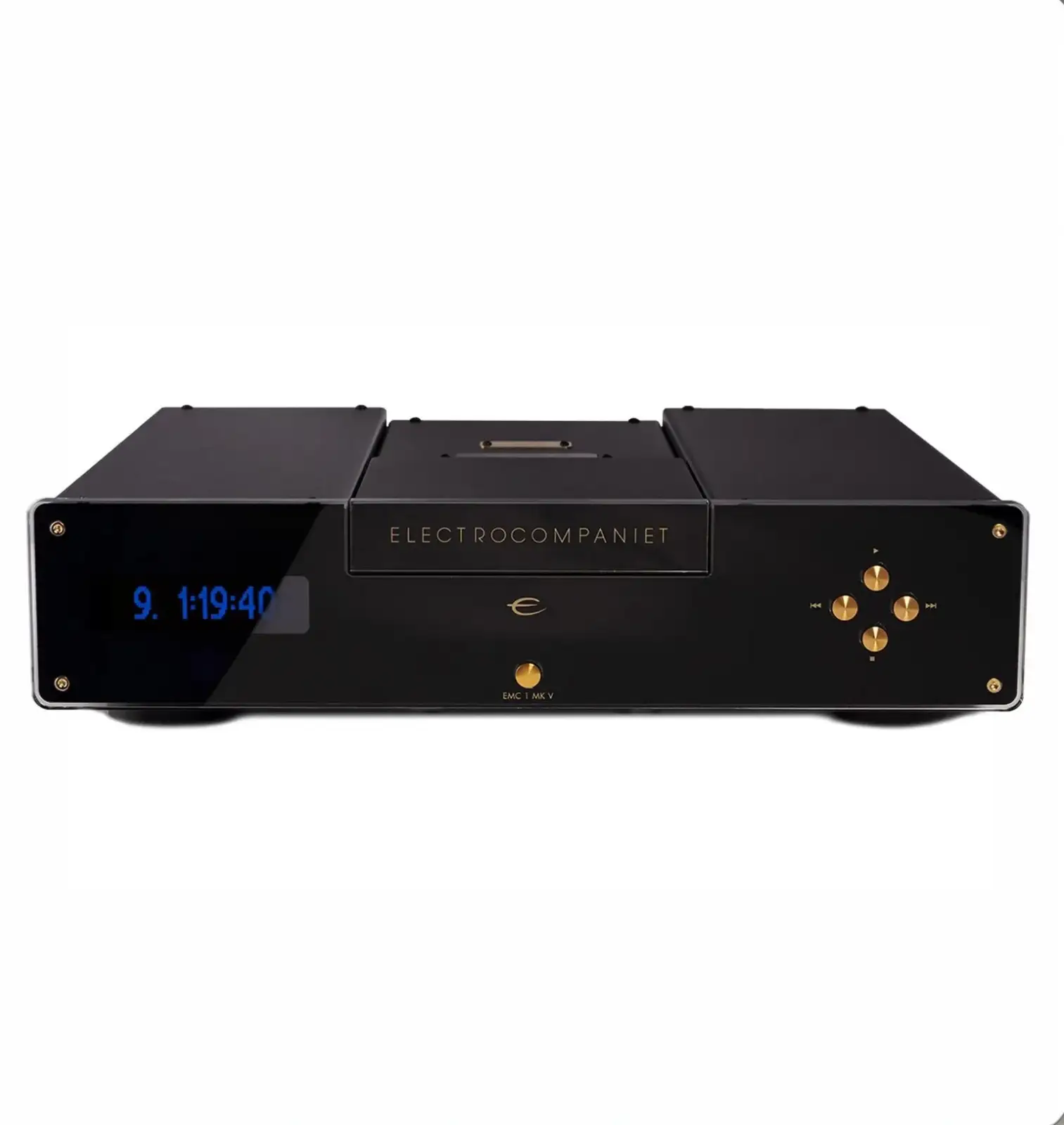

EMC 1 MKV Reference

自 1998 年以來，Electrocompaniet 一直致力於生產市場上音質最佳的 CD 播放機之一——EMC 1 UP。新款 EMC 1 MKV 在此基礎上更進一步，採用了全新的驅動單元。

MKV 還升級了電子元件，以提升音質；採用了全新的機械結構，使其更加堅固耐用；並配備了全新設計的機箱，與我們其他產品的 MKII 版本保持一致。

Manuals

TECHNICAL SPECIFICATIONS
Output level

(unbalanced) 2.3Vrms

(balanced) 4.6Vrms

Noise floor

< -130dB

Frequency deviation

(20-20kHz) 0.05dB

Channel separation

> 110 dB

THD+N

<0.003%

Dynamic range

120 dB

Power consumption

25 W

Digital/analog conversion

24 bit/192kHz

Power consumption Standby

0.5 W

Compatible formats: CD, CD-R, CD-RW

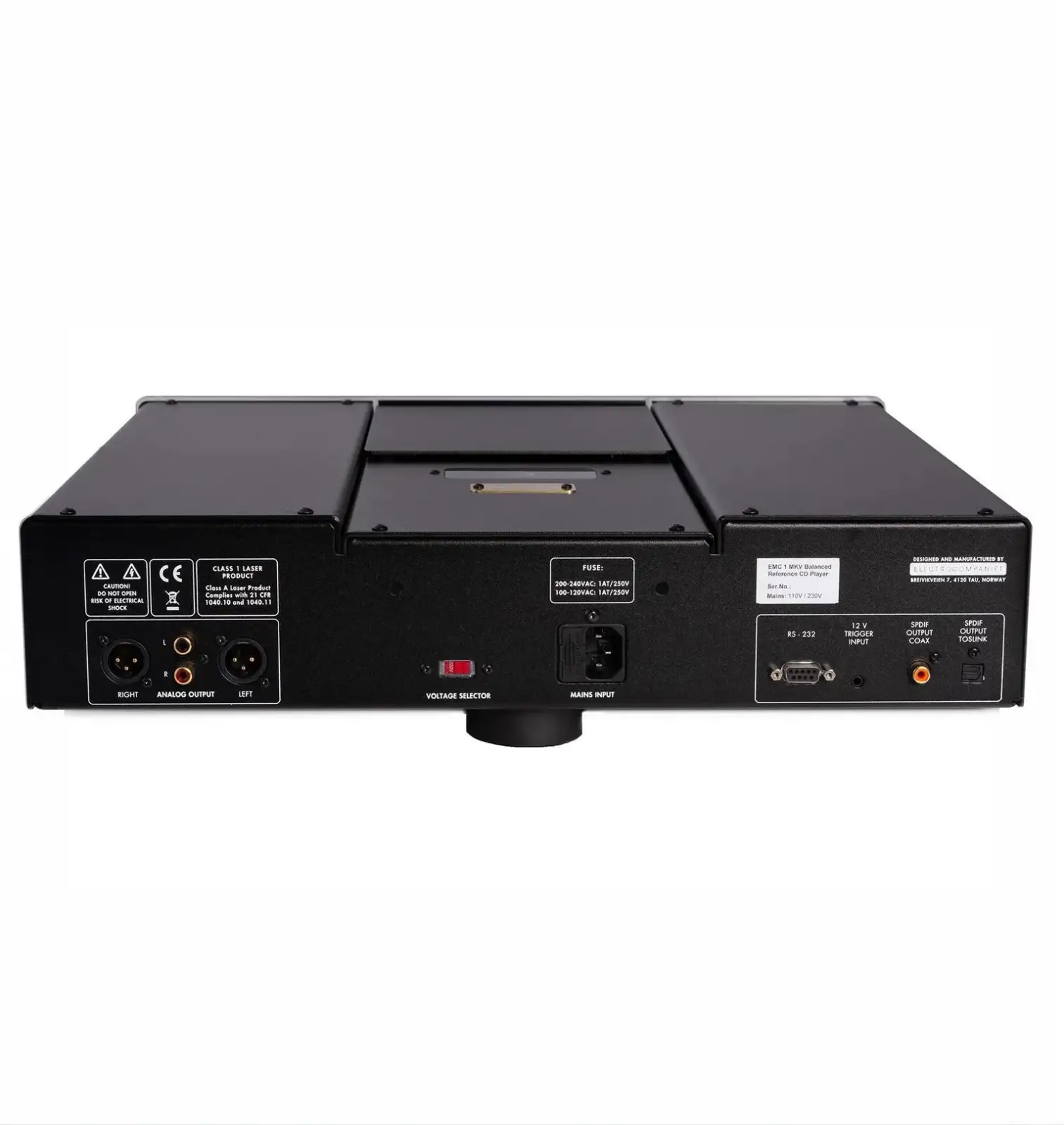

Digital outputs: SPDIF COAX, SPDIF TOSLINK

Control inputs: RS232, 12V Trigger

Other

True balanced system

Mechanical filter which cancels acoustic/mechanical vibrations preventing the laser pick-up from receiving unwanted signals

Fully remote (no volume control)

Dimensions

Width

470 mm / 18.5 inches

Depth

422 mm / 16.6 inches

Height

118 mm / 4.64 inches

Weight

18 Kg / 39.6 lbs.
