Main principle

Superhet with RF-stage; ZF/IF 455/10700 kHz

Wave bands

Broadcast (BC) and FM or UHF.

Power type and voltage

Alternating Current supply (AC) / 220 Volt

Loudspeaker

– For headphones or amp.

Material

Metal case

from Radiomuseum.org

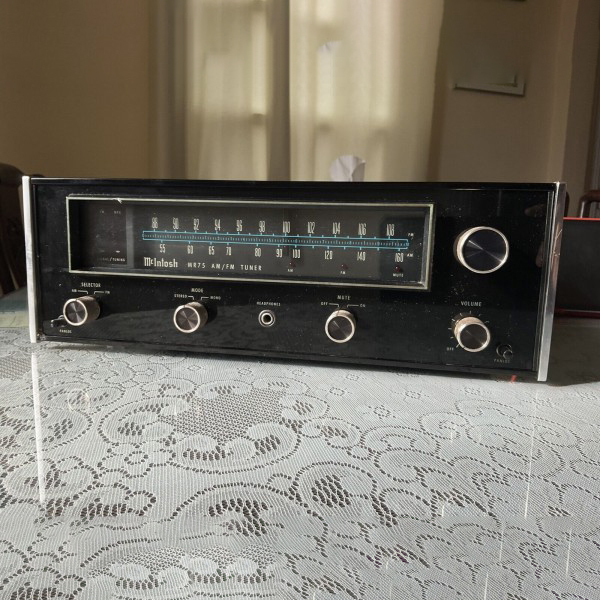

Model: AM-FM Tuner MR 75 – McIntosh Audio Company;

Shape

Chassis only or for «building in»

Dimensions (WHD)

16 x 5.44 x 13 inch / 406 x 138 x 330 mm

Notes

The Mcintosh AM-FM Stereo Tuner MR 75 has a foldable loopstick antenna for AM.
FM antenna input 300Ω or 75Ω. Switchable FM Preselector. Headphones output.
Wood case optional available.

Net weight (2.2 lb = 1 kg)

23 lb (23 lb 0 oz) / 10.442 kg
