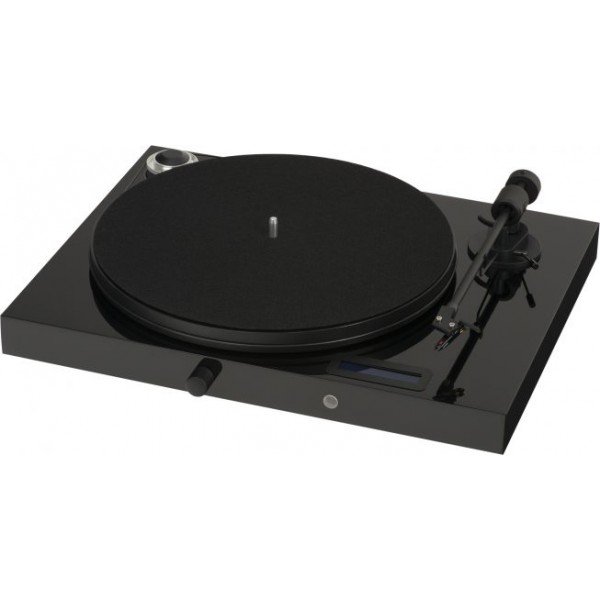

JUKE BOX E

Audiophile “All-in-one Plug & Play“ turntable system

BT & line input with included power amplifier!

Juke Box E is a record player, phono stage, BT receiver, line pre-amplifier and power amplifier in one, requiring only a pair of speakers to make a complete system. If you thought that a starter turntable system is complicated to set up, Juke Box E proves the contrary. This belt-drive deck offers the fastest possible installation process because it comes pre-adjusted out of the box and offers superb sound quality. Tracking force and anti-skating is pre adjusted for the pre-mounted Ortofon OM 5E cartridge.

The Juke Box Highpower Supply is available optionally. It features up to 50% more peak power output, increasing dynamic and bass response. The true ground connection over a 3 pin power plug can dramatically reduce hum and noise under critical power conditions.

In the box:

• Juke Box E with Ortofon OM 5E cartridge
• Remote control incl. batteries
• Felt mat
• Dust cover
• Adapter for 7“ singles
• Power supply
• Allen key, stylus pressure gauge, gloves

• Features

• Instant playback with super-easy setup
• High contrast display on top
• BT and 1 line input
• Line record output
• Gold plated sockets
• Pre-adjusted tracking force & anti-skating force
• Ortofon OM5e cartridge, pre-mounted
• 8.6” aluminium tonearm with sapphire bearings
• Belt drive with silicone belt
• Low vibration synchronous motor & DC power supply
• Special feet for effective decoupling
• IR remote control included

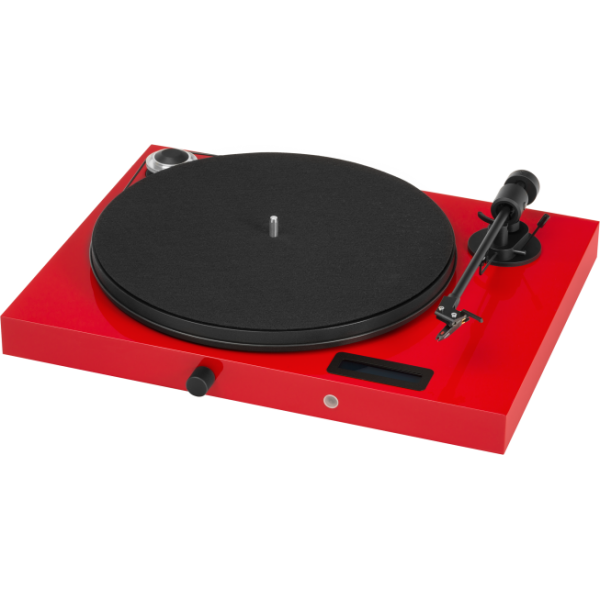

• Colour options: HG Black, HG White, HG Red

• Technical Specifications

  Power output	2 x 50 Wats (4 Ohm)
  Outputs	Speakers, Line out (fixed), Phono out
  Inputs	BT, 1x Line (analogue)
  Speed	33, 45 (manual speed change)
  Principle	Belt drive
  Speed variance	33: 0.8% 45: 0.7%
  Wow & flutter	33: 0.29% 45: 0.27%
  Platter	300 mm particleboard with felt mat
  Main bearing	Stainless steel in bronze bushing
  Tonearm	8.6” aluminium
  Effective arm length	218.5 mm
  Overhang	22.0 mm
  Effective tonearm mass	8.0 g
  Counterweight for mass	3 – 5.5g (pre-mounted)
  Tracking force range	0 – 25mN (OM5e 18mN pre-adjusted)
  Included accessory	Power supply, dust cover, remote control
  Power consumption	110W max
  Dimensions	415 x 118 x 334mm (WxHxD)
  Weight	5 kg net
