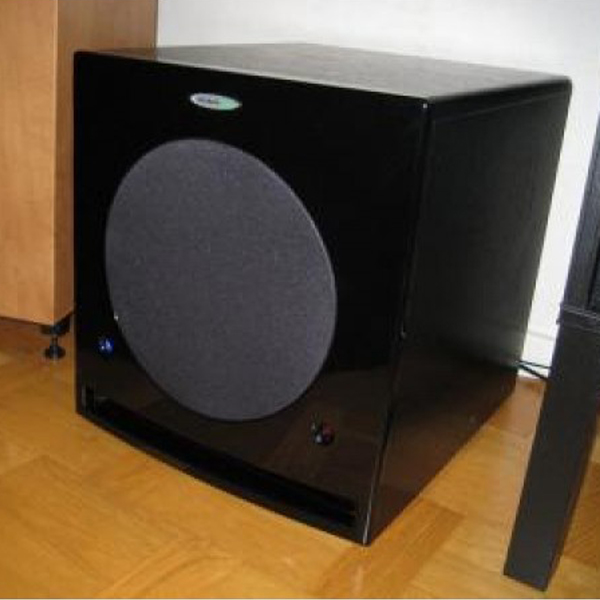

| CHT-12R Powered Sub Woofer Specifications : | |
| Power Requirements: | 230V, 50 Hz |
| Configuration: | Extended Excursion Slot-Loaded Bass-Reflex |
| Driver: | 12″ forward firing(9.9″ piston diameter) with vented pole piece |
| Frequency Response: | 25-120 Hz +/-3 dB |
| Distortion Limiting System: | Yes |
| High Pass Crossover(Digital): | 80 or 100 Hz(6 dB/octave slope) |
| Low Pass Crossover(Digital): | 40 Hz-120 Hz (adjustable)(12 dB octave, 24 dB ultimate) |
| Digital Phase: | 0, 90, 180, 270 degrees |
| Digital Presets: | Movies; R&B-Rock; Jazz-Classical; Games |
| Auto On/Off: | Yes |
| Continuous Power: | 200 watts |
| Dynamic Power: | 400 watts |
| Magnet: | 3.5 lbs. |
| Voice Coil: | 2″ 4-layer copper |

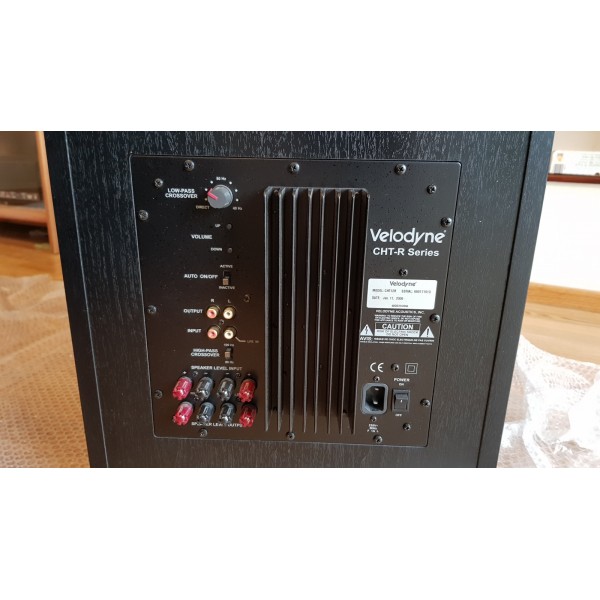

| Inputs: | Gold plated line-level and speaker-level |
| Outputs: | Line-level and speaker-level |
| Crossover bypass: | Subwoofer Direct |
| Cone: | Reinforced fiber |
| Cabinet (H/W/D): | 18″ x 15″ x 19.5″ |
| Weight (approx.): | 60 lbs. |
| Finish: | Black Gloss Front with Black Ash or Cherry Vinyl body or Silver Gloss Front with Silver Vinyl body |
