Number of Tubes

7

Valves / Tubes

ECC84 ECC85 ECF80 EF80 EM84 ECF80 EZ80

Number of Transistors

Semiconductors

OA79 OA79

Main principle

Superhet with RF-stage

Tuned circuits

10 FM circuit(s)

Wave bands

FM Broadcast Band Only

Power type and voltage

Alternating Current supply (AC) / 210; 230; 250 Volt

Loudspeaker

– For headphones or amp.

Material

Metal case

from Radiomuseum.org

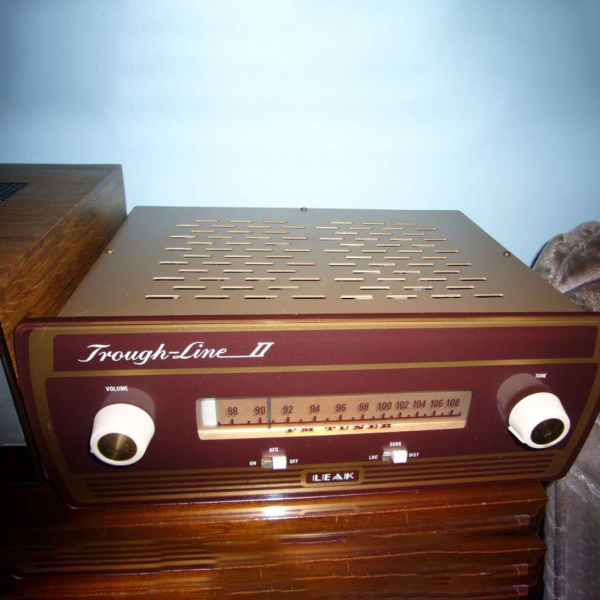

Model: Trough-Line II – Leak, H.J.; London

Shape

Tablemodel, low profile (big size).

Dimensions (WHD)

292 x 113 x 235 mm / 11.5 x 4.4 x 9.3 inch

Notes

FM Tuner with AFC;  mono, with Multiplex output.

Net weight (2.2 lb = 1 kg)

5.3 kg / 11 lb 10.8 oz (11.674 lb)
