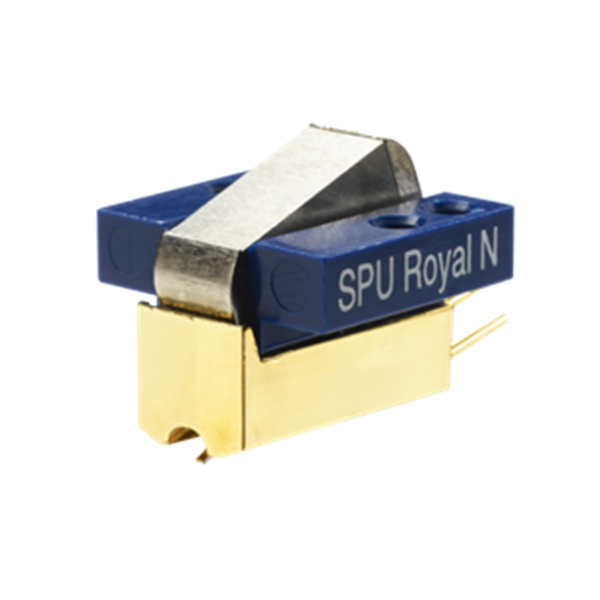

The SPU Royal N provides the same sound reproduction properties as the SPU Royal GM series
The addition of Ortofon’s unique Replicant 100 stylus and reduced tip mass ensures open and detailed sound reproduction for a purely exquisite listening experience.
Electrum coils, consisting of a gold and silver alloy, provides uncolored and precise transmission of armature movements while the slightly modified damping system makes it possible to reduce VTF and achieves a higher level of linearity.
High purity 6-nines copper wiring ensures impeccable signal transmission and preservation of the finest of microdynamic detail.
The SPU Royal N is sold without the integrated headshell unit.
Listeners who wish to mount the SPU Royal N on a traditional headshell may do so by using SPU N adaptor. Those with vintage SPU-type headshells can use the Royal N to recreate an authentic and functional SPU cartridge.
Technical data
Output voltage at 1000 Hz, 5cm/sec. – 0.2 mV
Channel balance at 1 kHz < 1 dB
Channel separation at 1 kHz > 25 dB
Channel separation at 15 kHz > 20 dB
Frequency response – 20-20.000 Hz + 1,5/- 0 dB
Tracking ability at 315Hz at recommended tracking force *) > 70 µm
Compliance, dynamic, lateral – 8 µm/mN
Stylus type – Nude Ortofon Replicant 100
Stylus tip radius – r/R 5/100 µm
Tracking force range – 2.5-3.5 g (25-35 mN)
Tracking force, recommended – 3.0 g (30 mN)
Tracking angle – 20°
*) Typical value
Internal impedance, DC resistance – 6 ohm
Recommended load impedance > 100 ohm
Coilwire material – Electrum
Cartridge colour – Black
Cartridge weight – 13 g
