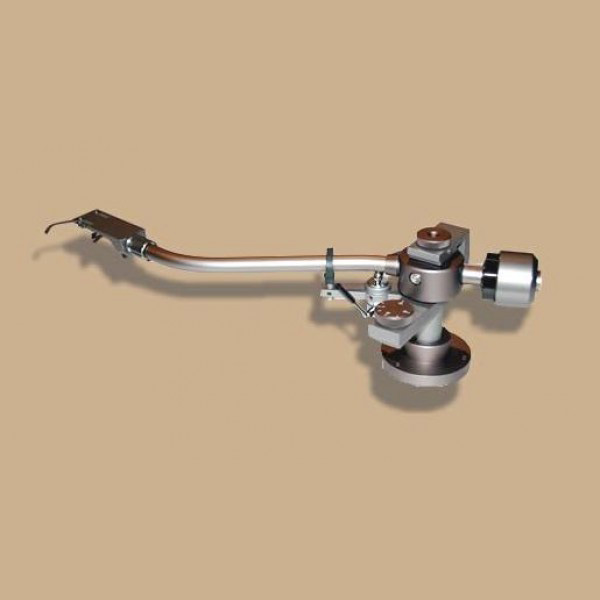

model SA-750D
Color Bronze
Effective length (from the tonearm pivot to stylus point) 229mm
Distance of the tonearm pivot to spindle 214mm
Overhang (spindle to stylus point) 15mm
Offset angle 22°
Tracking error asngle +1.9° -1.1°
Horizontal sensitivity (first action, inner wire free) 30mg
Vertical sensitivity (first action, inner wire free) 20mg
Suitable cartridge self weight for standard counter weight 4 ~ 12 gr
Suitable cartridge self weight for heavier counter weight 12 ~ 24 gr
Range of height adjustment(distance between 38~60mm
the arm base bottom and center of the arm pipe)
