Phono Box USB V

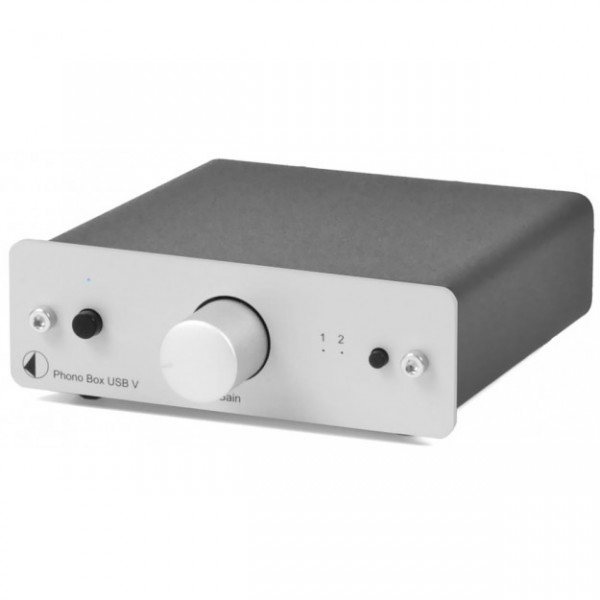

This Phono Box USB V DC is beautifully crafted. The front panel is adorned with an amazing blue micro led, a gain potentiometer and a line input selector button. With the volume button, you can adjust the recording level as you wish. Handy and clever!
RIAA Phono Preamplifier
MM or MC position selector
24V DC separate power supply
Gold-plated RCA outputs and inputs
USB output: USB 1.1
MM gain: 40 dB
MC gain: 60 dB
Line gain: 11 dB
Input impedance Moving magnet (MM): 47Kohms/120pf, gain 40dB
Input impedance Moving Coil (MC): 100oHms/120pf, gain 60 dB
A/D converter: 16-bit delta sigma
Sampling frequencies: 33, 44.1, 48 KHZ
Distortion: 0.005%
Dimensions: 103x36x115 mm
Weight: 570g
