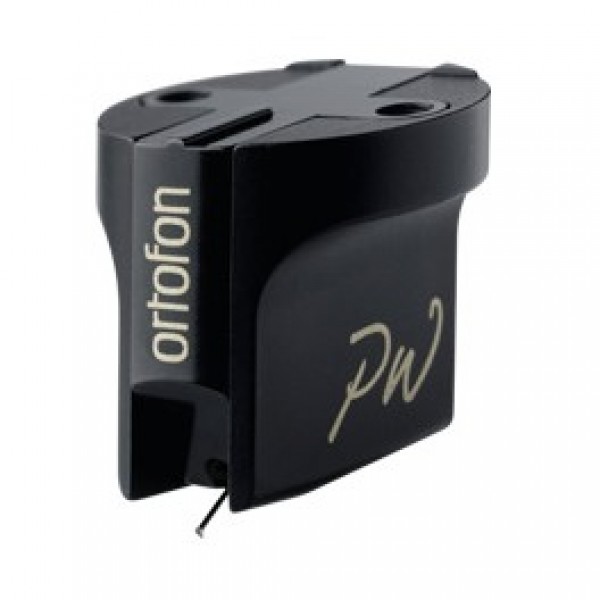

ORTOFON MC WINDFELD MC

Output voltage at 1000 Hz, 5cm/sec: 0,3 mV
Channel balance at 1 kHz: <0,2 dB
Channel separation at 1 kHz: >28 dB
Channel separation at 15 kHz: >22 dB
Frequency range: 10-80.000 Hz
Frequency response: 20-20.000 Hz +/- 1 dB
FIM distortion at recommended tracking force, DIN 45.542: <1%
Tracking ability at 315Hz at recommended tracking force: 100 µm
Compliance, dynamic, lateral: 16 µm/mN
Stylus type: Nude Ortofon Replicant 100, special polished
Stylus tip radius: r/R 5/100 µm
Tracking force range: 2,3-2,8 g (23-28 mN)
Tracking force, recommended: 2,6 g (26 mN)
Tracking angle: 23°
Internal impedance, DC resistance: 4 Ohm
Recommended load impedance: >10 Ohm
Cartridge body material: Stainless steel/special alloy
Cartridge colour: Black/Black
Cartridge weight: 13 g
