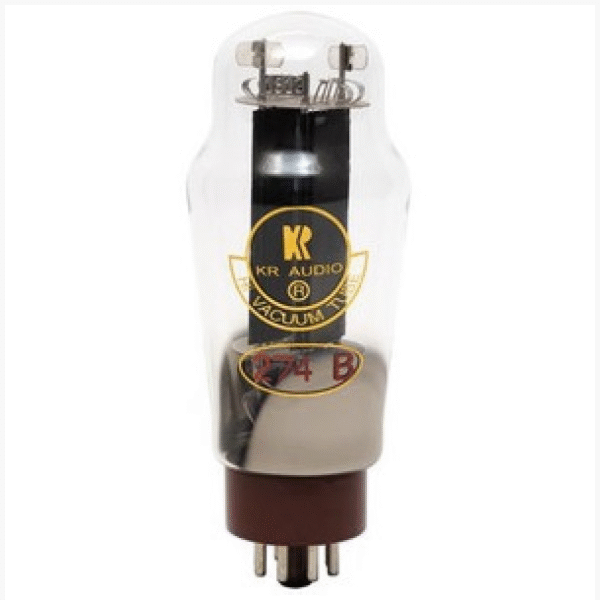

274B

Specification

Filament specifications:

• DC/AC Voltage 5 V
• DC/AC Current 2 A

Full-wave, Thermionic High Vacuum Rectifier

Maximum Ratings

With Choke-Input Filter:

• A-C Plate Voltage per Plate (RMS) 660 volts
• D-C Output Current 225 ma
• Minimum Input-Choke Inductance 2 henrys

With Capacitor-Input Filter:

• A-C Plate Voltage per Plate (RMS) 450 volts
• D-C Output Current 160 ma
• Min. Total Eff. Plate-Supply Impedance per Plate 100 ohms
• Input capacitor should not exceed 10 micro farads
