- Number of Tubes
- 7
- Valves / Tubes
- ECC85 ECH81 EF89 EF89 EM80 EABC80 EL84
- Number of Transistors
- Semiconductors
- B250C75
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz
- Tuned circuits
- 8 AM circuit(s) 12 FM circuit(s)
- Wave bands
- Broadcast, Long Wave, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110, 125, 150, 220, 240 Volt
- Loudspeaker
- 4 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org

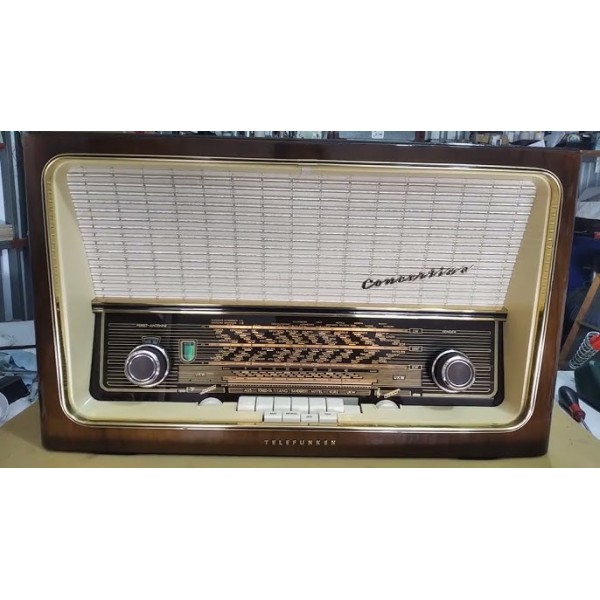

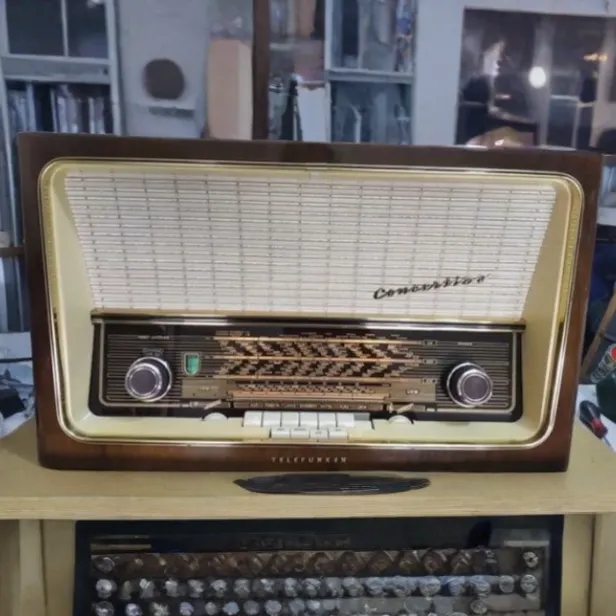

- Model: Concerto 8 – Telefunken Deutschland TFK,
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 650 x 380 x 285 mm / 25.6 x 15 x 11.2 inch
- Notes
- Bandbreite schaltbar, Kurzwellenlupe.Siehe auch die Exportausführung Telefunken Concertino 8 C 488 S für Schweden.
- Net weight (2.2 lb = 1 kg)
- 14.2 kg / 31 lb 4.4 oz (31.278 lb)
