SPECIFICATIONS

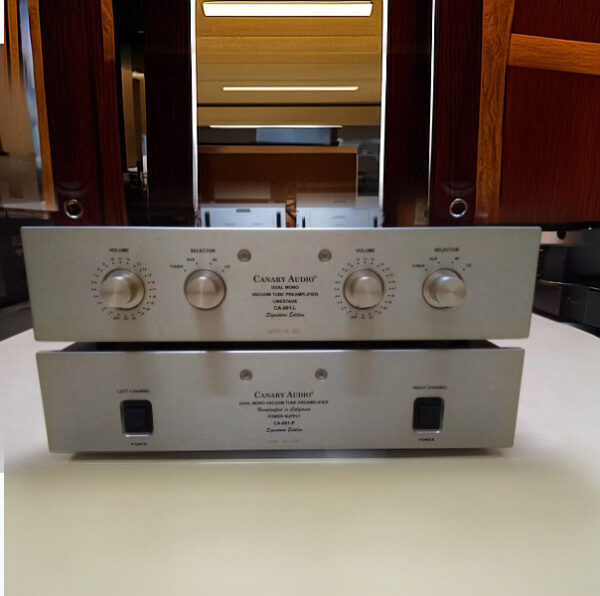

Model: -CA-801
Input Impedance: 50,000 Ohms min
100,000 Ohms max
Output Impedance: 1,200 Ohms
Maximum Gain: 12.3 dB
Frequency Response: +/- 1 dB from 8 Hz to 78,500 Hz
Hum and Noise: -86 dB
Maximum Output Voltage before clipping: 30 Volts
Total Harmonic Distortion: < 0.02%
Power Consumption (both channels): 66 Watts (true RMS)
Tube Complement – CA-801-L: 2-12AX7/ECC83,
2-12AU7/ECC82
Tube Complement- CA-801-P: 2-EF86
2-12BH7
Dimensions – CA-801-L: 19″ W x 15″ D x 4.75″ H
Dimensions- CA-801-P: 19″ W x 15″ D x 4.75″ H
Weight – CA-801-L: 23 lbs.
Weight – CA-801-P: 34 lbs.
Note:
Specifications are subject to change without notice. Weight and dimensions are approximate.
Brand
CANARY AUDIO
美國 Canary Audio 以產製真空管300B機聞名, 是制造高端音響的美國公司。 要有品質的音樂是我們的宗旨。 Canary Audio 從不走捷徑, 一直以最高品質的配件更以人手製作每部產品. 他們對選用配件時有時更會比其他廠家更樂意花成本用心嚴選配件, 因為他們相信客人一定會細心聆聽.。
