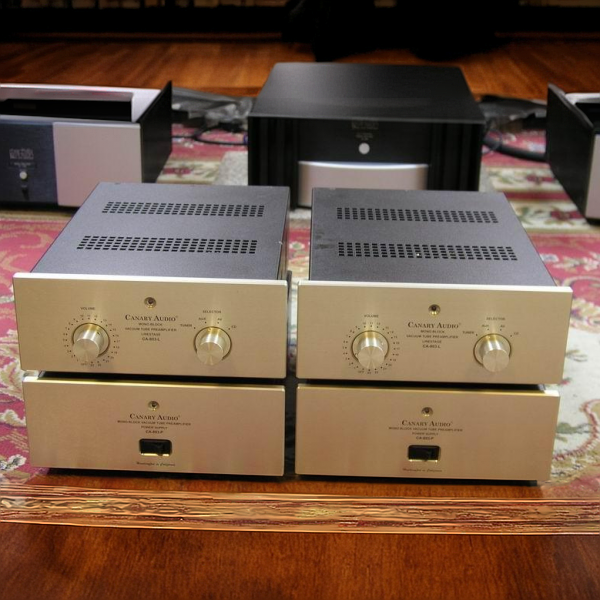

Model: CA-803
Input Impedance: 50,000 Ohms min
100,000 Ohms max
Output Impedance: 1,200 Ohms
Maximum Gain: 12.3 dB
Frequency Response: +/- 1 dB from 5 Hz to 118,000 Hz
Hum and Noise: -90 dB
Maximum Output Voltage before clipping: 43.9 Volts
Total Harmonic Distortion: < 0.01%
Power Consumption (both channels): 78 Watts (true RMS)
Tube Complement (per channel) – CA-803-L: 1-12AX7/ECC83, 1-12AU7/ECC82
Tube Complement (per channel) – CA-803-P: 1-EF86 1-12BH7
Dimensions (per channel) – CA-803-L: 11” W x 15” D x 4.75” H
Dimensions (per channel) – CA-803-P: 11” W x 15” D x 4.75” H
Weight (per channel) – CA-803 -L: 12 lbs.
Weight (per channel) – CA-803 -P: 19 lbs.
Brand
CANARY AUDIO
美國 Canary Audio 以產製真空管300B機聞名, 是制造高端音響的美國公司。 要有品質的音樂是我們的宗旨。 Canary Audio 從不走捷徑, 一直以最高品質的配件更以人手製作每部產品. 他們對選用配件時有時更會比其他廠家更樂意花成本用心嚴選配件, 因為他們相信客人一定會細心聆聽.。
