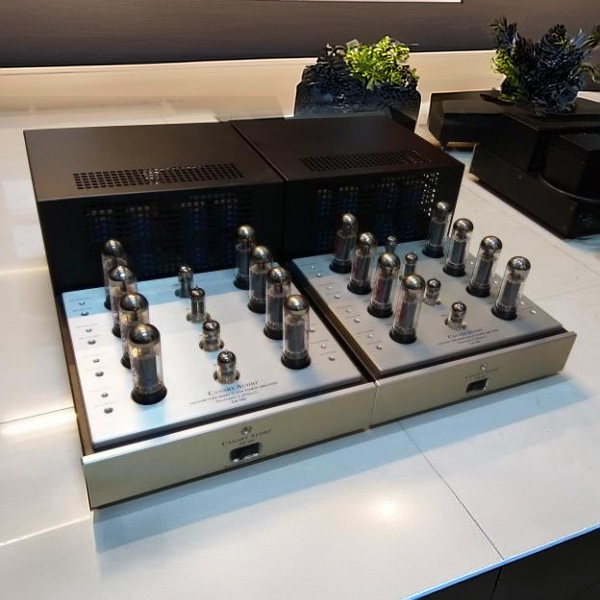

| Specifications for CA-160 | |
| Rated Power Output: | 140 Watts RMS (Ultra Linear Mode) 100 Watts RMS (Triode Mode) |
| Input Sensitivity: | 0.60 Volts for full output (Ultra Linear Mode) 0.53 Volts for full output (Triode Mode) |
| Input Impedance: | 470,000 Ohms |
| Frequency Response: | +/- 1dB from 10 Hz to 50,000 Hz (Ultra Linear Mode) +/- 1dB from 10 Hz to 40,000 Hz (Troide Mode) |
| Total Harmonic Distortion: | < 0.06% (Ultra Linear Mode) < 0.5% (Troide Mode) |
| Signal-to-Noise Ratio: | -77 dB below 1 Watt (Ultra Linear Mode) -78 dB below 1 Watt (Triode Mode) |
| Damping Factor: | 16 |
| Power Consumption: | 320 Watts (true RMS) |
| Output Impedance: | 4, 8 Ohm |
| Tube Complement (per channel): | 8 x EL34 / 6CA7 2 x 6922 1 x 6CG7 / 6FQ7 1 x 12BH7 |
| Dimensions (per channel): | 13″ W x 24″ D x 8.5″ H |
| Net Weight (per channel): | 65 lbs |
Brand
CANARY AUDIO
美國 Canary Audio 以產製真空管300B機聞名, 是制造高端音響的美國公司。 要有品質的音樂是我們的宗旨。 Canary Audio 從不走捷徑, 一直以最高品質的配件更以人手製作每部產品. 他們對選用配件時有時更會比其他廠家更樂意花成本用心嚴選配件, 因為他們相信客人一定會細心聆聽.。
