Number of Tubes

6

Valves / Tubes

ECC85 ECH81 EF89 EABC80 EM84 EL84

Main principle

Superheterodyne (common); ZF/IF 460 kHz

Tuned circuits

6 AM circuit(s)     10 FM circuit(s)

Wave bands

Broadcast, Long Wave, Short Wave plus FM or UHF.

Power type and voltage

Alternating Current supply (AC) / 110; 127; 160; 220 Volt

Loudspeaker

3 Loudspeakers

Material

Wooden case

from Radiomuseum.org

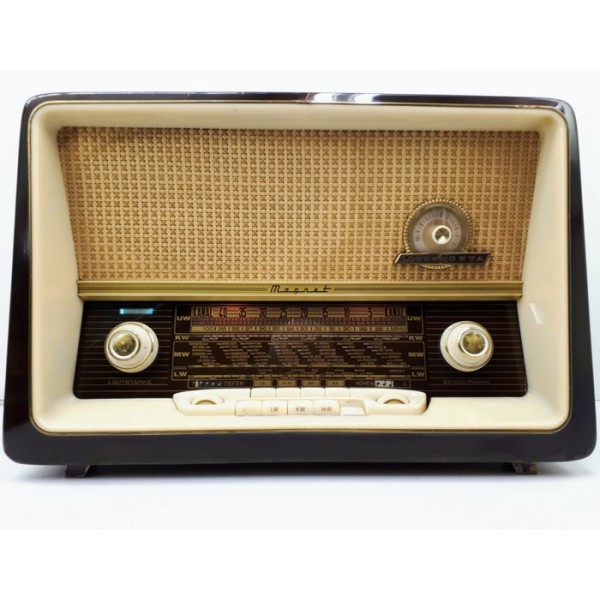

Model: Magnet 4725W – Loewe-Opta; Deutschland

Shape

Tablemodel with Push Buttons.

Dimensions (WHD)

550 x 360 x 250 mm / 21.7 x 14.2 x 9.8 inch

Notes

Kurzwellenlupe, beleuchtet. Ferritantenne schaltbar.

Net weight (2.2 lb = 1 kg)

9.3 kg / 20 lb 7.8 oz (20.485 lb)
