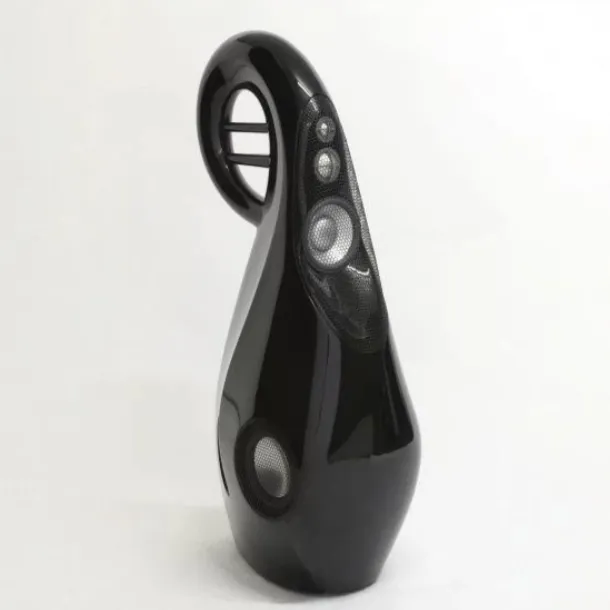

GIYA G3 Cu
小巧便攜
G3 Cu 保留了較大型號的馬達結構和懸吊輪廓，儘管直徑減小，卻能夠產生強勁的低音能量。
低音箱體的頂部採用瞭如今我們熟悉的錐形管吸音器的獨特曲線，能夠完全消除從頂部到底部的共振，帶來清晰精準的低音。
相對值
G3 Cu 以其獨特的複合材料外殼，無疑是 GIYA 家族的一員，也是先鋒 G1 的直系後裔。與其一樣，其引人注目的設計完全由功能驅動。
捲曲錐形管吸收器完全消除了從頂部到底部的共振，從而通過一對 C135 單元提供清晰精準的低音——考慮到 G3 Cu 的緊湊尺寸，其強勁的音效讓您不得不親耳聆聽才能相信。
表達自我
即使高度僅 1.1 米，G3 Cu 揚聲器也同樣引人注目。您或許希望將其前衛的雕塑感設計融入其中，或許更傾向於讓它的做工來表達。我們提供豐富的顏色選擇，讓您可以根據自己的喜好，打造或低調或張揚、或內斂或華麗的揚聲器。
G3 Cu
提供兩種標準顏色——珍珠白和鋼琴黑，您也可以透過特殊訂製獲得任何其他顏色。
-
SPECIFICATIONS
| Specifications | Vivid Audio GIYA G3 Cu |
|---|---|
| Configuration |
4-way 5 driver system |
| Cabinet material |
Glass reinforced balsa cored sandwich composite, carbon fibre base |
| Cabinet colour |
Piano Black, Lexus Pearl White, Oyster Matte |
| Bespoke cabinet colour |
Bespoke colour options available on request |
| Drive units |
HF: D26 – 26mm alloy/carbon diaphragm dome unit with Tapered Tube loading |
|
Upper-mid: D50Cu – 50 mm alloy/carbon diaphragm dome unit with copper cap and Tapered Tube loading |
|
|
Lower-mid: C125SCu – 125mm alloy cone/ 50mm voice coil (equivalent to 6.5” driver) unit with copper cap and Tapered Tube loading |
|
|
Bass: C135 – 2 x 135mm alloy cone units/76mm voice coil (equivalent to 8” ) drivers with underhung motor design |
|
| Bass loading |
Exponentially tapered tube enhanced bass reflex |
| Sensitivity |
87 dB @ 2.83 Vrms at 1m on axis |
| Nominal impedance (Ω) |
6 nominal, 4 minimum, low reactance |
| Frequency range (Hz) |
– 6 dB points: 33 – 36.000 |
| First D26 Break Up mode (Hz) |
44.000 |
| Frequency response (Hz) |
36 – 33.000 +/- 2 dB on reference |
| Harmonic distortion (2nd and 3rd harmonics) |
<0.5% below 220Hz, <0.1% between 220Hz and 3.5kHz, <0.3% above 3.5kHz |
| Cross over frequencies (Hz) |
220 – 880 – 3.500 |
| Power handling (music program) |
800 watts rms |
| Loudspeaker dimensions |
1.161mm (H) x 341mm (W) x 578mm (D) – 45,7” (H) x 13,4” (W) x 22,8” (D) |
| Net weight |
42kg 93lbs (internal crossover – 37kg (81lbs) external crossover |
Brand
南非 VIVID AUDIO
