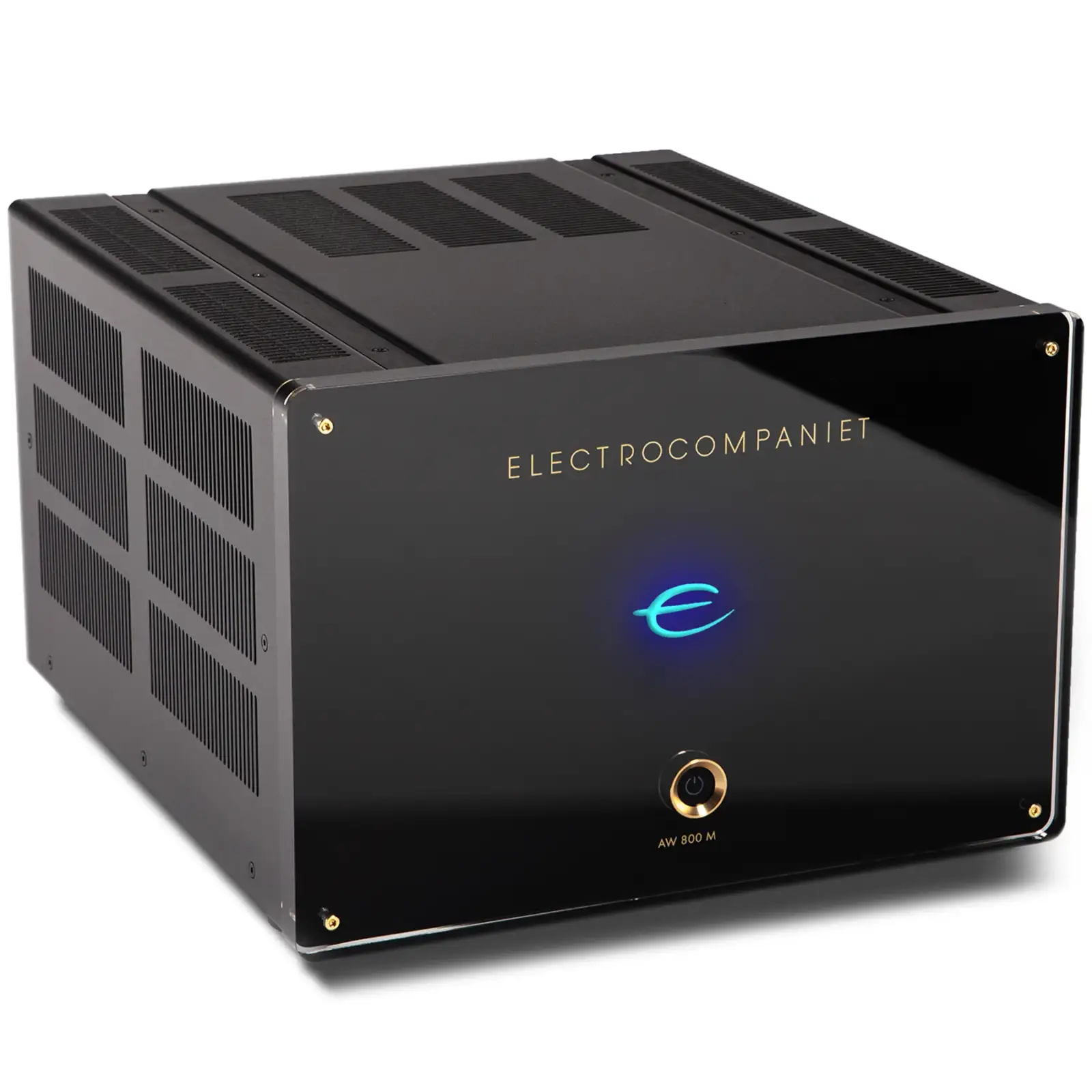

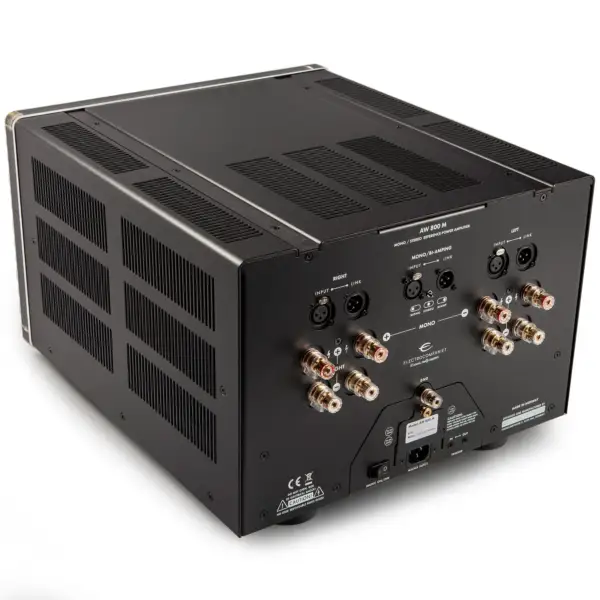

AW 800 M Reference

AW 800 M 是 Electrocompaniet 全新旗艦級功率擴大機。它取代了傳奇的 AW 600 NEMO，成為我們功率最強大的單聲道功率擴大機。這款擴大機展現了煥然一新卻又極具辨識度的 Electrocompaniet 設計，與所有現有和經典的 Electrocompaniet 產品完美匹配。

TECHNICAL SPECIFICATIONS
Input impedance: 330 kΩ
Frequency resp. (in. filter active):0.5 – 220 kHz
Frequency resp. (in. filter dis.): 0.5 – 1.1 MHz
Voltage gain (mono, bal. input): 35 dB (x56)
Voltage gain (stereo, bal. input): 29 dB (x28)
Input-referred noise (20-20kHz): < 2 μV
SNR (ref. 1W/8Ω load, 20-20 kHz): 95 dB
SNR (ref. full power out, 20-20 kHz): 122 dB
Slew-rate (input filter disabled): 270 V/μs
DC output voltage: < 5 mV
THD+N: 0.0006 %
IMD: 0.001 %
Damping factor (8Ω load): > 1000
Power consumption standby: < 0.5W
Protection: DC, overload, temperature

RATED OUTPUT POWER STEREO:
8Ω load: 2 x 300 W
4Ω load: 2 x 600 W
2Ω load: 2 x 1000 W
RATED OUTPUT POWER MONO:
8Ω load: 800 W
4Ω load: 1500 W
2Ω load: 2200 W
WEIGHT & DIMENSIONS:
Weight: 55 kg – 122 lbs
Width: 406 mm – 15.98 inches
Depth: 488 mm – 19.21 inches
Height: 292 mm – 11.49 inches
