X25 Silver
High-end power cable with double screening, silverings and 3x 2.5 mm2 conductors.
ViaBlue™ X-25 Silver power cables supply high-end audio and video equipment with clean power. The double screening keeps out interfering frequencies. The X-25 sets out the basis for a completely clean and crystal clear sound. External disturbances have no influence on the signals being transmitted.
absolute sovereignty in transmission.
X-25 Silver power cable with double shield.

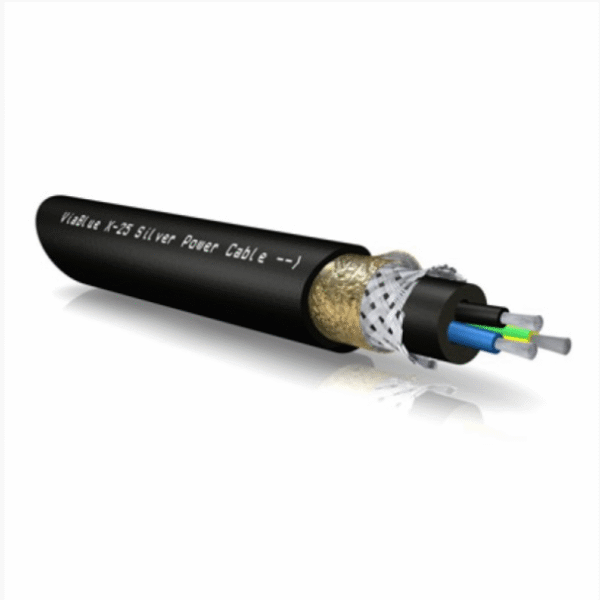

ViaBlue™ X-25 Silver power cables supply high-end audio and video equipment with clean power. The ViaBlue™ X-25 Silver has three conductors with each 2.5 mm2. Each conductor contains 50 silvered strands. The double screening of 100% aluminum-laminated foil and 93% tinned copper braid with 32 strands guards against interference from electromagnetic (EM) and radio frequency (RF) sources. The external diameter of the X-25 power cable is 13 mm. The X-25 Silver is very flexible and elastic. The X-25 has certifications of VDE, HAR, UL, CUL / CE.
Non-shielded power cords may act as antennas. Thus, external interference fields have effects on the frequencies of the signals. The ViaBlue™ X-25 Silver cord with 100% covering shields blocks these external interference fields. For a properly functioning system, it is necessary to transport electrical power clean and trouble-free to all connected devices and giving the complete system that depends on the incoming power an optimum of interference-free basis. The X-25 sets out the basis for a completely clean and crystal clear sound. External disturbances have no influence on the signals being transmitted. Full transfer of the entire spectrum is given by technical linearity.
DESCRIPTION:
• X-25 SILVER POWER CABLEOUTTER DIAMETER:
• 13 MMCONDUCTOR DIAMETERS:
• 3X 2.5 mm2SCREENING CONSTRUCTION:
• ALU FOIL 32X 0.10 STRANDS BRAID
ROHS COMPLIANCE:
• ROHS COMPLIANT
SCREENINGS:
• 2 (1X FOIL / 1X BRAID.)
FINISHINGS:
• SILVERED / TINNED
ISOLATION RESISTANCE:
• > 20 MOHM X KM
ISOLATION:
• PVC TM2 MIX VDE 0472
TEST VOLTAGE:
• 3000 VOLT
PLAY-IN-TIME:
• APPR. 16 HOURS
ZULASSUNGEN:
• VDE CE UL CSA
CONDUCTOR SIGNS:
• BLACK BLUE GREEN/YELLOW
