Description
A simple, well thought-out circuit, short signal paths and the best, mast reliable components quarantee that your favorite music reaches you directly, thus producing long-term pleasure and satisfaction! Employing valves in this circuit is not the norm in other brands. The design was chosen because with only one amplifying component per channel there is less technology to interfere with the music.

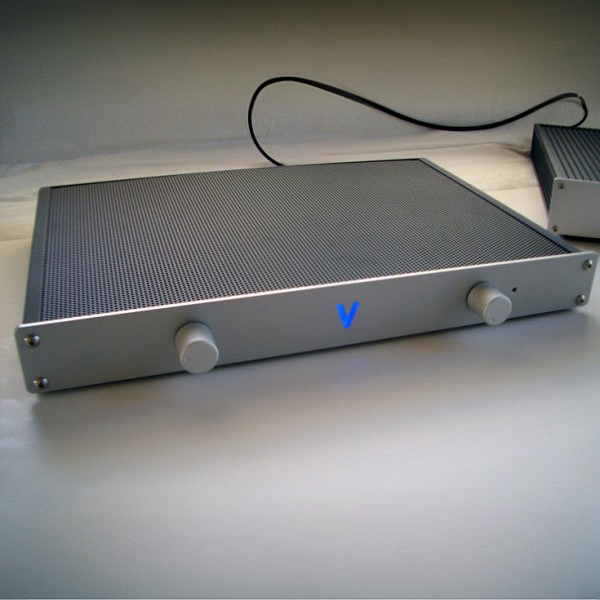

The L2 Preamplifier operates with just one dual triode of the Type 6SN7 per channel. The circuit topology employed has a number of advantages: low distortion without feedback, excellent linearity and (for valves) low output impedance. With an external power supply (as standard with valve rectification), hum interference is ruled out. The inputs are switched using a precision rotary switch, and all signal paths are hand-wired with pure silver. The volume can be controlled by remote (Alps motorized pot).
The Preamplifier P2 offers 4 line inputs and phono input (MM RIAA passive). The Preamplifier P2c has, in addition, an MC pure silver transformer.
Specifications
12 inputs: 6 high level inputs (RCA), input impedance 100 kOhm amplification: 10x, maximum output > 10 Volts, output impedance 2.5
kOhm, 2 outputs (RCA) (either OUT REC or OUT 1 OUT 2 for bi amping)
dimensions: 445 x 45 x 230 mm (17.5 x 1.8 x 9 inches) WxHxD-Pre-amp; 120 x 60 x 320 mm (4.7 x 2.35 x 12.6 inches) WxHxD-tube power supply
remote control: yes, volume control
volume control: Alps motorized potentiometer
cose: black powder coated, steel base plate, the rest aluminum
front: 4 mm, silver or black anodized, deep chromed brass at extra charge
sound not the dull valve sound of the 50s; but open, clear, dynamic with an impressive bass and gorgeous timbre
P2 inputs: excellent MM phono input (no negative feedback) 4 high level inputs (RCA), input impedance 47 KOhm il 100 pF Phono, 100 KOhm
Line
P2c inputs: like the P2 but with an additional MC pure silver transformer
