V-70
Power type and voltage
Line / Batteries (any type) / AC and DC 1 x 1,5 Volt
Material
Bakelite case
from Radiomuseum.org

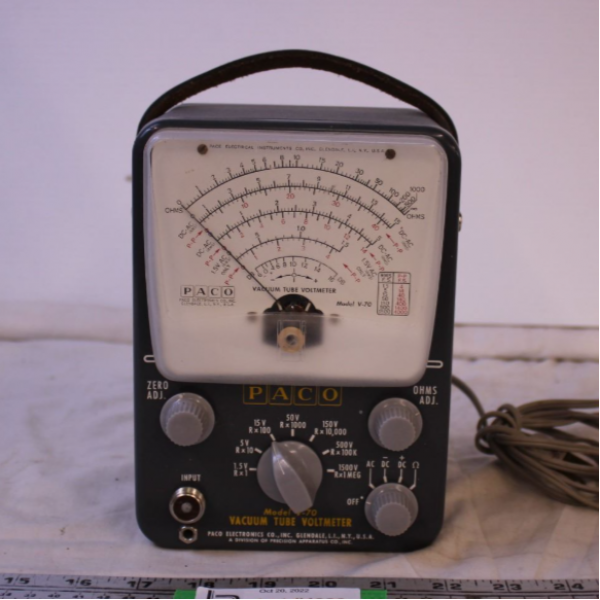

Model: Vacuum Tube Voltmeter V-70 – PACO Electronics Co., Inc.;
Shape
Tablemodel, with any shape – general.
Dimensions (WHD)
8.4 x 7.5 x 3.5 inch / 213 x 191 x 89 mm
Notes
- Seven ranges, 1.5-1,500V AC/DC.
- Seven ranges: 4 – 4,000 V P.P.,
- Resistance: 1 kΩ-1000 MΩ,
- dB: -6 to +16 dB.
1.5(rms) with 4 (p.p.) V range has a separate scale.
A high voltage probe permits direct measurement of voltage up to 60 kV.
