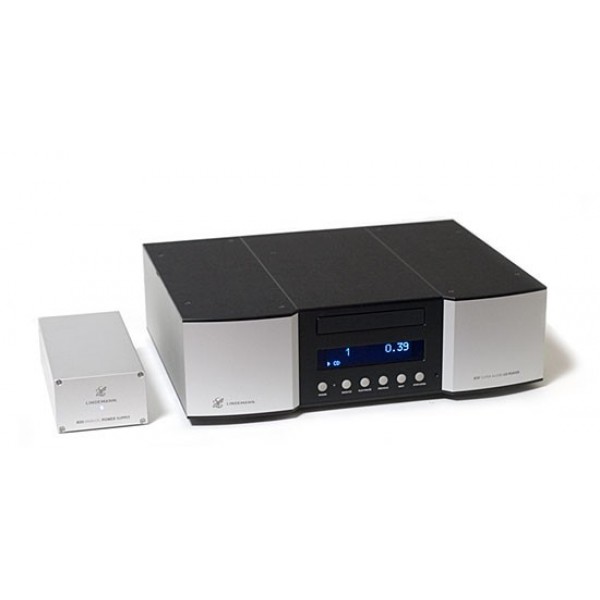

LINDEMANN 820S + 800PS SACD
| 輸入: |  Coax RCA |
 AES/EBU |
||
| 輸出: | Coax RCA |
AES/EBU |
RCA |
 XLR |
尺寸(WxHxD): 44 x 13.5 x 34.5 cm 重量: 13.5 kg
CD formats supported SACD Stereo, CD, CD-R
Optical Pickup Dual laser system with coated glass lens
Laser diode wavelenght:
SACD = 650nm, CD = 780nm
Transport SONY OM4
Digital outputs SPDIF, 75 Ω, 0.5Vpp (RCA)
AES/EBU, 110 Ω, 3Vpp (XLR)
Digital to Analog Conversion Dual differential DAC´s, 24bit/192kHz
Frequency response 0 Hz – 22kHz (PCM)
0 Hz – 38 kHz (DSD)
Dynamic Range > 124dB (PCM)
> 144dB (DSD)
Signal to noise ratio > 120dB (A-weighted, AES 17, digital null)
THD < 0.002% @ 1 kHz (PCM)
< 0.001% @ 1kHz (DSD)
Low-Level linearity < 0.5 dB @ -90dBFS
DAC bit-rates PCM: 5.6448 MHz (128 FS)
DSD: 2.8224 MHz (64 FS)
Output voltage (0dBFS) 4.40 V balanced
2.20 V unbalanced
Output impedance 100 Ω
Volume control range 60dB in 0.5dB steps
Balance control range -5dB….+5dB
Channel balance < 0.05dB
Dimensions 440 x 135 x 345 mm
Weight 13.5 kg
Power supply 100V, 120V, 230V (50-60Hz)
factory set for destination country
Power consumption 15W max. (820S), 15W max. (800)
Inputs (3) SPDIF digital inputs (RCA)
(1) AES/EBU digital input (XLR)
Outputs (1) pair analog outputs (XLR)
(1) pair analog outputs (RCA)
(1) SPDIF digital output (RCA)
(1) AES/EBU digital output (XLR)
Other connections (1) Sub-D 15-pole, analog power supply
(2) RJ-45 4-pole, SYSCOM
(1) IEC power inlet
Accessories included (1) 820S Super Audio CD Player
(1) 800 Analog Power Supply
(1) Sub-D-cable 15-pole, 1m
(2) Standard power cord, 1.5m
(1) System remote-control
Brand
LINDEMANN
