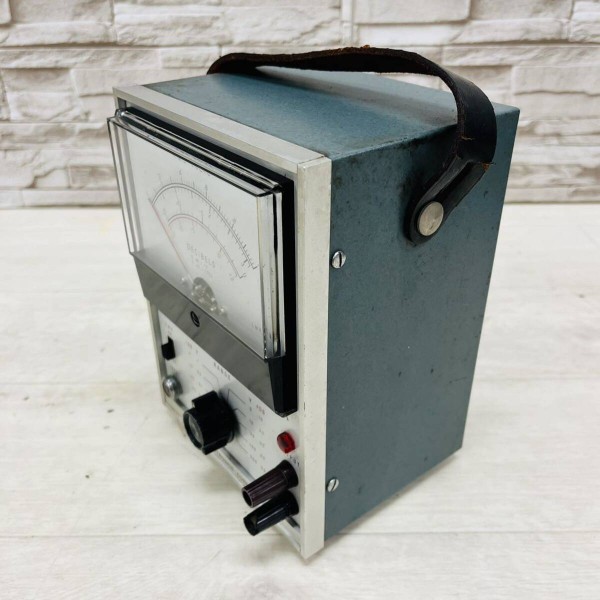

LMV-86

Specifications
Measurement range10
mV~300 V (RMS) 10 RANGE
0~10, 30, 100, 300 mV
0~1, 3, 10, 30, 100, 300 VError3 % (at full scale) Frequency response10
Hz ~800 KHz + 1 dB 5 μΩ 15 PFInput Resistance Input capacitance Cable 40 PF DB Scale -60~+52 dB (0 dB=0.775 V) -60~+50 dB (0 dB=1V) Data0 ~3V 0~1V -20~+2 dB -20~0 dBPower supplyAC 100V 50/60 Hz 8 VAVacuum tube6C4 12AT7-2Accessories1P7 adapter (with earth) …………1 piece Dimensions and weight: 140x190x120 mm, approx. 2.5 kg
